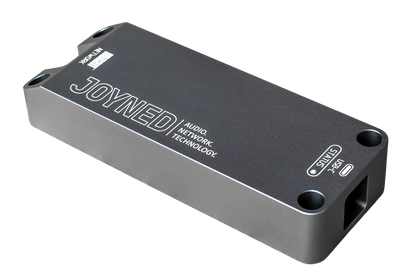

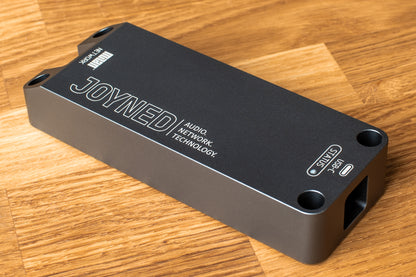

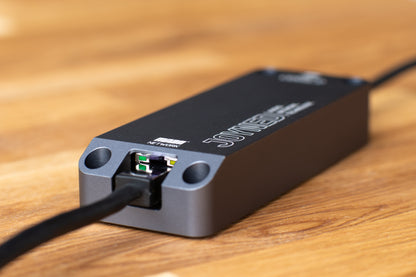

MU16 – Milan USB Interface

Your Milan Audio Interface for Live, Studio, and Beyond

€682
€682

We are shipping now

Free shipping

2 years warranty
    MU16 – Milan USB Interface
    MU16 – Milan USB Interface
    MU16 – Milan USB Interface
    MU16 – Milan USB Interface
    MU16 – Milan USB Interface

    Your Milan Audio Interface for Live, Studio, and Beyond

    Compact, powerful, and future-ready, the MU16 brings seamless Milan network connectivity to your macOS, Windows and iOS — with pristine 32-bit audio, rock-solid stability, ultra-low latency, and the flexibility to grow with your needs.

    In the box
    • JOYNED MU16 MILAN USB INTERFACE
    • Lockable USB-C cable
    Audio Performance
    • 16 input, 16 output audio channels
    • 4 Input, 2 output Milan streams
    • Sample Rates 48 kHz, 96 kHz
    • 32-bit resolution
    System Requirements

    Operating System

    • macOS: Apple introduced USB Audio Class 2.0 support in 2009. No drivers required.
    • Windows: Windows 11, no drivers required. For professional audio applications a free JOYNED ASIO driver can be downloaded here https://joyned.io/pages/resource-hub-mu16
    • iOS: Apple introduced USB Audio Class 2.0 support with iOS 10 in 2016. No drivers required.
    • Linux: Class compliant USB 2.0 audio is supported on Linux but it is not included in our testing.

    Network

    • AVB certified Switches
    • Milan control via separate network interface.

    USB

    • Power: 500mA @5V, 2.5 watts
    • USB 2.0 high speed
    Connectivity

    USB Interface

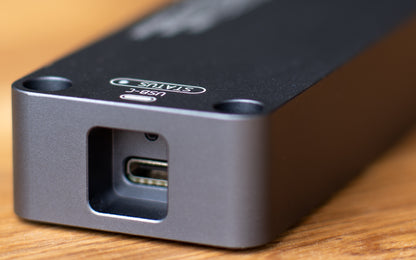

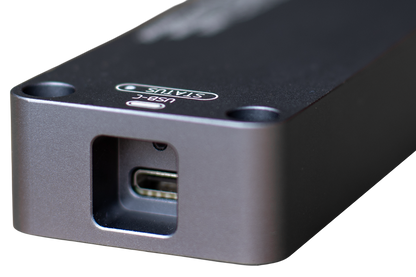

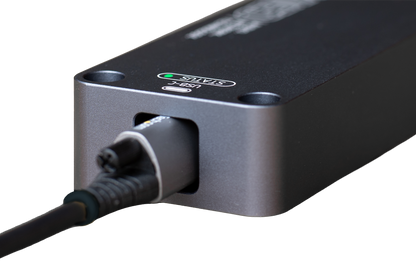

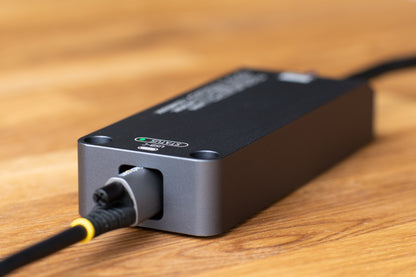

    • Lockable USB-C, cable included
    • Class-compliant, USB 2.0, works with MacOS, Windows, iOS devices

    Network Interface

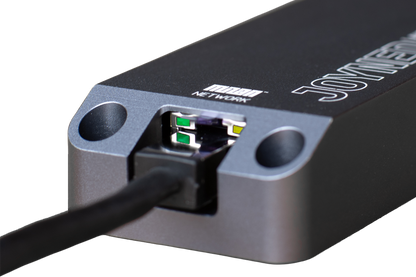

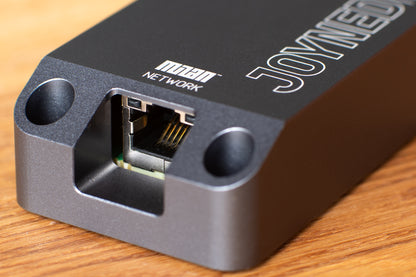

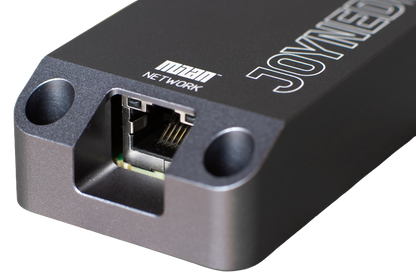

    • Milan-compliant over Gigabit Ethernet, RJ45
    • MU16 is officially Milan certified through Avnu Alliance
    Physical
    • Pocket-sized: 125 × 46 × 24 mm, 4.9 × 1.8 × 1.0 inches
    • Weight: 215 g, 7.58 oz (without cable)

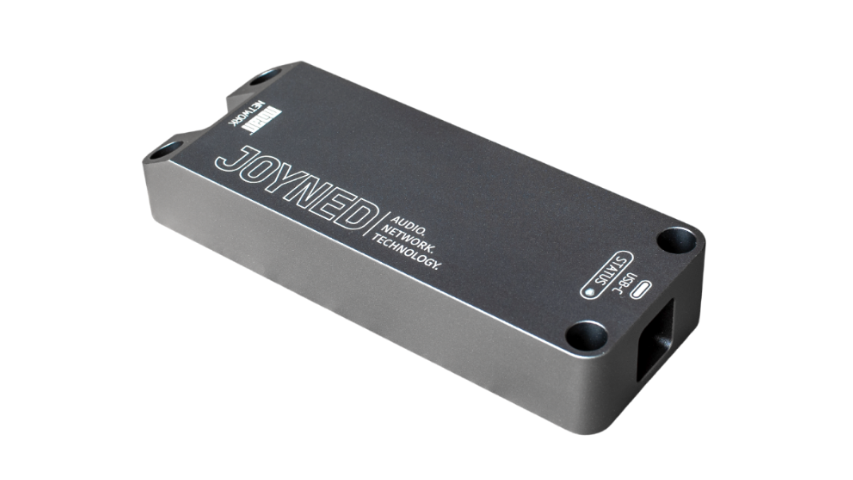

    • Robust unibody aluminum housing, bead-blasted and anodized

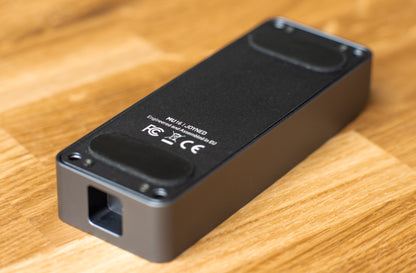

    • Mounting options for screws or cable ties

    Resources

    View all

    • Manual

      Need a quick start or want to get into details?

      Open Manual

    • Firmware

      Stay up to date with the latest MU16 firmware.

      Download

    Frequently Asked Questions

    Your feedback drives us. We’re always listening — share your thoughts with us at info@joyned.at

    Does MU16 run 16 channels at both 48 and 96 KHz?

    Yes
    Does the MU16 require a driver?

    No, MU16 is class compliant and will work on macOS, Windows and iOS devices.

    For professional audio applications a free JOYNED ASIO driver can be downloaded here https://joyned.io/pages/resource-hub-mu16
    How many Milan devices can the MU16 receive audio from?

    You can use the 4 input streams to receive from 4 individual Milan devices on the network.
    Is MU16 powered by PoE?

    MU16 is powered by USB only and is not receiving PoE.
    The LED is blinking, what is wrong?

    A blinking green LED indicates that the USB and Milan sample rates are not identical, in which situation the MU16 will also mute. Either change the Milan network sample rate or the computer/project sample rate.
    I have no audio, what is wrong?

    Muted audio may indicate that the USB and Milan sample rates are not identical, in which situation the MU16 LED will also blink. Either change the Milan network sample rate or the computer/project sample rate.
    Does MU16 also feature a standard ethernet connection in order to control the Milan network?

    Currently not, you will need an extra ethernet connection from you computer to the Milan network to do so.
    Does MU16 support Android?

    MU16 is a class compliant audio interface and connects to all devices that supports that. On Android, we unfortunately see a less structured support for external audio interfaces, which means that it may not work. Therefore we do not officially support for Android. Tests and potential work arounds on an individual basis is expected and we wold love to hear your findings.
    Does MU16 support Windows 10?

    Microsoft ended free, standard support for Windows 10 on October 14, 2025 and therefore we are not officially testing on Windows 10 but there should be no reason why MU16 wouldn't work there.

    For professional audio applications a free JOYNED ASIO driver can be downloaded here https://joyned.io/pages/resource-hub-mu16
    What products on the market support Milan?

    Please refer to the constantly updated official AVNU list of certified devices on the market. https://avnu.org/certified-product-registry
