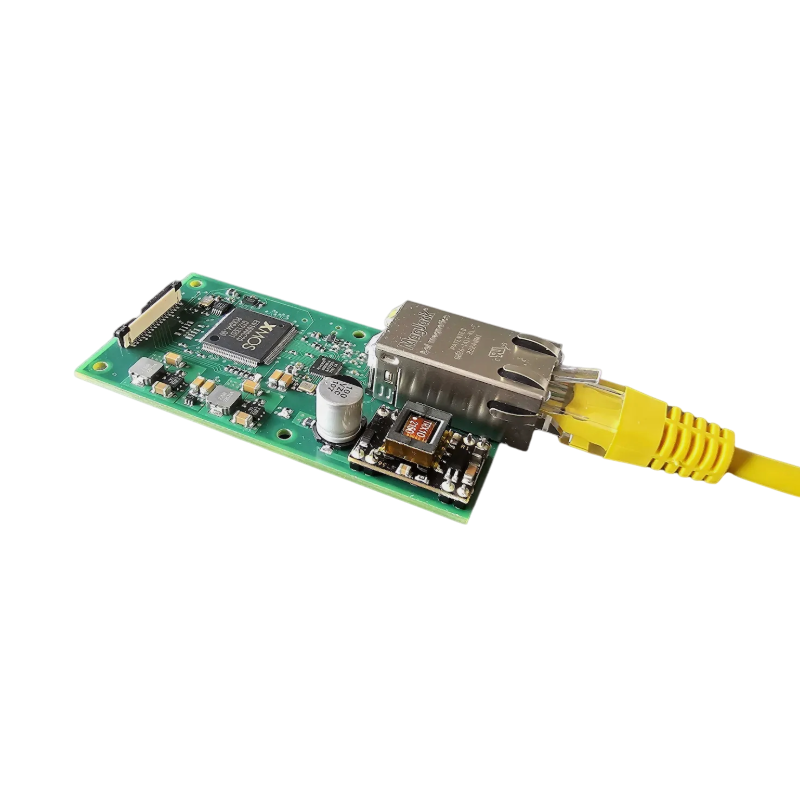

MT32-TDM to MILAN

The MT32 is the ideal tool for kickstarting your audio network developments. Its compact size makes it both convenient and cost-effective for building Milan-enabled products. Optional output cards provide flexibility to adapt to various use cases. Powered by JOYNED’s XM2 - MILAN software for XMOS , it ensures seamless integration, Avnu certification support, and robust performance for live sound, studio production, and commercial AV installations.


Product Details

JOYNED Milan Software

  • Full Milan compliance for professional audio over Ethernet.
  • Supports up to 16x16 audio channels and 2x2 streams.
  • Compatible with sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz.
  • Simplified integration process with XMOS microcontrollers, ensuring a reliable and solid foundation.
  • Functional verification support provided by JOYNED for meeting all professional standards.

Microcontroller XMOS xCORE-200 XE216
A high-performance, 16-core microcontroller designed for time-sensitive applications:

  • Dual 32-bit RISC cores running at up to 500 MHz.
  • Deterministic execution for precise timing.
  • Integrated support for networking, I/O, and control applications.
    Learn more about the xCORE-200 XE216.

Clock Recovery (PLL)

Cirrus Logic CS2100 or CS2501 for low-jitter clock recovery, ensuring high-precision synchronization.

Ethernet PHY

AR8035 for reliable transmission and reception of ethernet data.

System Connector

  • Master Clock
  • Serial Audio Interface (LRCLK/FSYNC, BCLK, Data)
  • I2C
  • GPIOs
  • Power 5V and 3.3V

Power Over Ethernet (PoE)

A Silvertel PoE Module powers the whole circuit with enough headroom for peripherals connected through the System connector.

Technical Overview

In the box
  • JOYNED MU16 MILAN USB INTERFACE
  • Lockable USB-C cable
Audio Performance
  • 16 input, 16 output audio channels
  • 4 Input, 2 output Milan streams
  • Sample Rates 48 kHz, 96 kHz
  • 32-bit resolution
System Requirements

Operating System

  • macOS: Apple introduced USB Audio Class 2.0 support in 2009. No drivers required.
  • Windows: Windows 11, no drivers required.
  • iOS: Apple introduced USB Audio Class 2.0 support with iOS 10 in 2016. No drivers required.

Network

  • AVB certified Switches
  • Milan control via separate network interface.

USB

  • Power: 500mA @5V, 2.5 watts
  • USB 2.0 high speed
Connectivity

USB Interface

  • Lockable USB-C, cable included
  • Class-compliant, USB 2.0, works with MacOS, Windows, iOS devices

Network Interface

  • Milan-compliant over Gigabit Ethernet, RJ45
  • MU16 is officially Milan certified through Avnu Alliance
Physical
  • Pocket-sized: 125 × 46 × 24 mm, 4.9 × 1.8 × 1.0 inches
  • Weight: 215 g, 7.58 oz (without cable)
  • Robust unibody aluminum housing, bead-blasted and anodized
  • Mounting options for screws or cable ties

Blog posts

View all

Frequently Asked Questions

Your feedback drives us. We’re always listening — share your thoughts with us at info@joyned.at

Does MU16 run 16 channels at both 48 and 96 KHz?

Yes
Does the MU16 require a driver?

No, MU16 is class compliant and will work on macOS, Windows and iOS devices.
How many Milan devices can the MU16 receive audio from?

You can use the 4 input streams to receive from 4 individual Milan devices on the network.
Is MU16 powered by PoE?

MU16 is powered by USB only and is not receiving PoE.
The LED is blinking, what is wrong?

A blinking green LED indicates that the USB and Milan sample rates are not identical, in which situation the MU16 will also mute. Either change the Milan network sample rate or the computer/project sample rate.
I have no audio, what is wrong?

Muted audio may indicate that the USB and Milan sample rates are not identical, in which situation the MU16 LED will also blink. Either change the Milan network sample rate or the computer/project sample rate.
Does MU16 also feature a standard ethernet connection in order to control the Milan network?

Currently not, you will need an extra ethernet connection from you computer to the Milan network to do so.
Does MU16 support Android?

MU16 is a class compliant audio interface and connects to all devices that supports that. On Android, we unfortunately see a less structured support for external audio interfaces, which means that it may not work. Therefore we do not officially support for Android. Tests and potential work arounds on an individual basis is expected and we wold love to hear your findings.
Does MU16 support Windows 10?

Microsoft ended free, standard support for Windows 10 on October 14, 2025 and therefore we are not officially testing on Windows 10 but there should be no reason why MU16 wouldn't work there.
What products on the market support Milan?

Please refer to the constantly updated official AVNU list of certified devices on the market. https://avnu.org/certified-product-registry
